1. Introduction to Biosensors

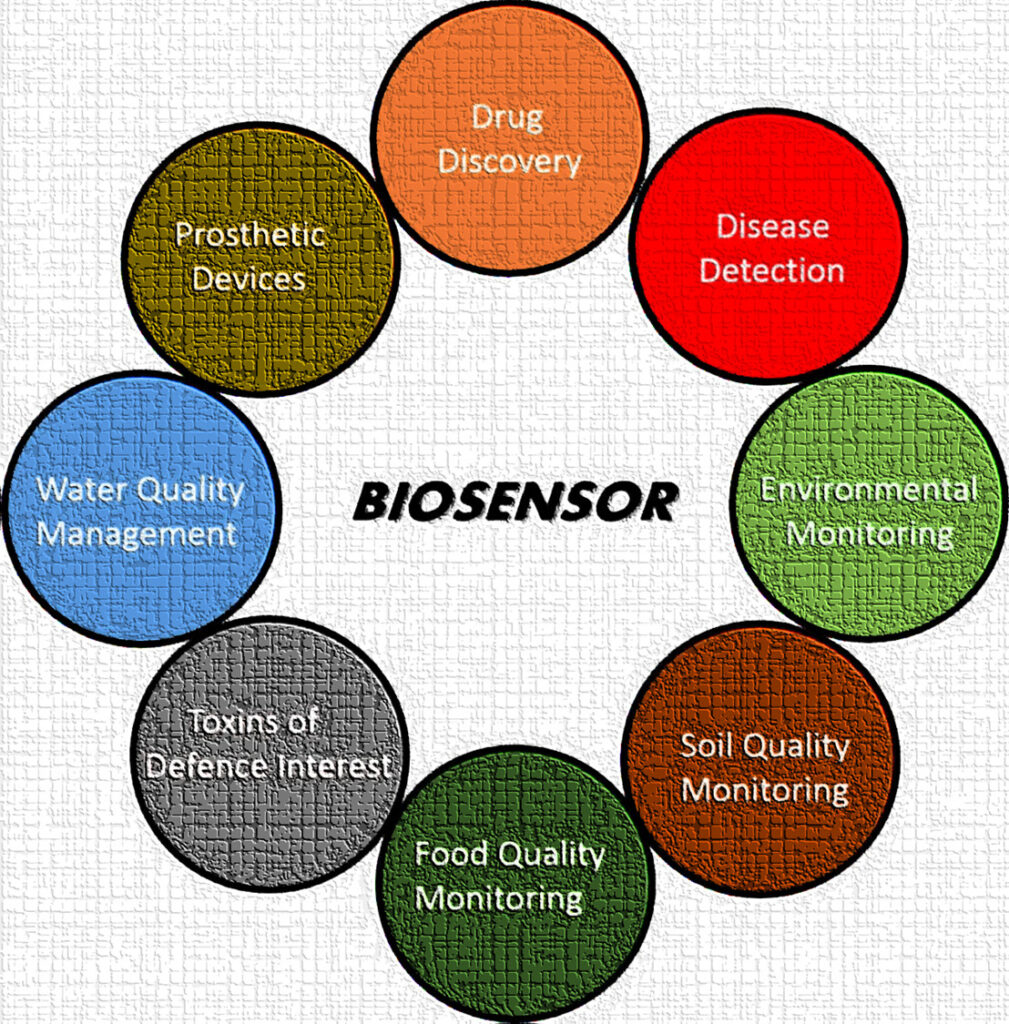

A biosensors is an analytical device that combines a biological sensing element (bioreceptor) with a physicochemical transducer to detect and quantify specific substances (analytes). Biosensors are widely used in fields like healthcare, environmental monitoring, food quality control, and especially in the pharmaceutical industry due to their ability to provide rapid, accurate, and real-time monitoring.
Definition (IUPAC):
“A biosensor is a self-contained integrated device that is capable of providing specific quantitative or semi-quantitative analytical information using a biological recognition element which is in direct spatial contact with a transduction element.”

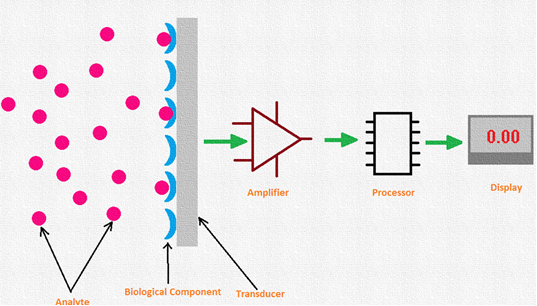

2. Components of a Biosensor
A biosensor consists of three primary components:
A. Bioreceptor
This is the biological sensing element that interacts with the target analyte. It can be:
- Enzymes
- Antibodies
- Nucleic acids
- Microorganisms
- Cells
- Receptors or aptamers
B. Transducer
The transducer converts the biochemical signal resulting from the interaction between the bioreceptor and analyte into a measurable signal. Types include:
- Electrochemical
- Optical
- Thermal
- Piezoelectric
- Magnetic
C. Signal Processor (Detector + Display)
- Converts the transduced signal into a digital signal
- Displays the results in a readable form
3. Working Principle of Biosensors
The typical working of a biosensor follows the steps below:
1. Recognition: The analyte binds specifically to the bioreceptor. This interaction is highly specific, akin to a lock-and-key mechanism.
2. Transduction: The binding event causes a change (e.g., in pH, heat, mass, or charge). This change is detected and converted into a measurable signal by the transducer.
3. Signal Amplification & Processing: The signal is amplified and processed through electronic circuits. Final output is displayed as a quantitative measurement.
4. Types of Biosensors
A. Based on Bioreceptor
1. Enzyme-based biosensors
2.Antibody-based (Immunosensors)
3. DNA biosensors
4. Microbial biosensors
5. Aptamer-based biosensors
B. Based on Transducer Type
| Type | Principle | Examples |
| Electrochemical | Measures current, voltage, or impedance | Glucose biosensor |
| Optical | Measures changes in light absorption, fluorescence, or SPR | DNA biosensors, cancer diagnostics |
| Thermal | Measures heat released or absorbed | Enzyme-substrate interactions |
| Piezoelectric | Measures mass change using frequency shift | Pathogen detection |
| Magnetic | Measures magnetic changes | Immunoassays |
5. Applications of Biosensors in Pharmaceutical Industries
A. Drug Discovery and Development
1. High-Throughput Screening (HTS): Biosensors are used to screen large libraries of compounds for potential drug candidates.
Example: Surface Plasmon Resonance (SPR) biosensors can detect drug-target binding in real-time.
2. Ligand-Receptor Interaction Studies: Useful for understanding kinetics (Ka, Kd) and affinity between drugs and receptors.
3. Mechanism of Action: Real-time data from biosensors help elucidate how drugs work at the molecular level.
B. Quality Control and Manufacturing
1. Real-Time Monitoring of Bioprocesses: Biosensors help monitor pH, oxygen, glucose, and metabolites during fermentation or production processes. Ensures consistency, reduces contamination, and improves yield.
2. Detection of Contaminants: Detect microbial contamination, endotoxins, or residual solvents quickly and accurately.
3. Sterility Testing: Microbial biosensors can detect the presence of bacteria/fungi, offering an alternative to traditional culture methods.
C. Pharmacokinetics and Drug Delivery
1. Real-Time Drug Monitoring in Plasma: Electrochemical biosensors can monitor drug levels in blood or serum to maintain therapeutic range.
2. Controlled Drug Delivery: Integration of biosensors with drug delivery systems allows feedback-based release (smart drug delivery).
3. Implantable Biosensors: Monitor therapeutic levels of drugs in chronic patients (e.g., epilepsy, cancer) using wearable or implantable sensors.
D. Personalized Medicine
1. Biomarker Detection: Biosensors help identify patient-specific biomarkers to tailor therapy accordingly.
2. Point-of-Care Testing (POCT): Portable biosensors used at the bedside or clinic for rapid diagnostics and decision-making.
3. Companion Diagnostics: Used to determine whether a patient will benefit from a specific drug therapy.
E. Vaccine Development
1. Antigen-Antibody Interaction Monitoring: Biosensors measure the strength of immune response or neutralizing antibody levels post-vaccination.
2. Viral Load Measurement: Real-time monitoring of virus levels in vaccine development and trials.
6. Examples of Biosensors in Use
| Application | Biosensor Type | Example |
| Glucose monitoring | Electrochemical | Glucometers |
| COVID-19 antigen testing | Lateral flow immunosensor | Rapid Antigen Test kits |
| Drug concentration monitoring | Electrochemical | Theophylline biosensor |
| DNA detection | Optical (SPR or fluorescence) | Genetic disease testing |
| Bioprocess control | Enzyme or microbial biosensor | Fermentation control |
7. Advantages of Biosensors in Pharma
• High sensitivity and specificity
• Rapid results
• Miniaturization and portability
• Low sample volume requirement
• Real-time monitoring
• Automation and integration in manufacturing systems
• Cost-effective alternative to traditional lab tests
8. Limitations and Challenges
• Stability of biological elements (enzymes/proteins degrade over time)
• Shelf life and storage conditions
• Interference from other biological compounds
• Reusability and reproducibility
• Miniaturization complexity for multiplexed sensing
• Regulatory hurdles in clinical diagnostics
9. Recent Advances in Biosensor Technology
1. Nanotechnology: Nanomaterials like carbon nanotubes, gold nanoparticles improve sensitivity and surface area.
2. Wearable Biosensors: Smart patches and devices for continuous monitoring of vital signs and drug levels.
3. Lab-on-a-Chip (LOC): Microfluidics integrated with biosensors to perform multiple analyses on a small chip.
4. Artificial Intelligence (AI) Integration: Enhances interpretation of complex biosensor data and predictive modeling.
5. 3D Printing of Biosensors: Custom fabrication of biosensors for personalized applications.
10. Regulatory Considerations in Pharma Use
• Biosensors used in pharma must comply with:
o US FDA (Food and Drug Administration)
o EMA (European Medicines Agency)
o ICH Q2(R1) guidelines (for analytical method validation)
Parameters to be validated include:
• Accuracy
• Precision
• Sensitivity
• Specificity
• Limit of Detection (LOD)
• Limit of Quantification (LOQ)
• Linearity
11. Future Perspectives
• Integration with AI and IoT for smart pharmaceutical manufacturing
• Use in remote monitoring and telepharmacy
• Biodegradable and implantable biosensors for chronic disease monitoring
• Multiplex biosensors for simultaneous detection of several analytes
• Automated production systems guided by biosensor feedback loops
Conclusion
Biosensors are revolutionizing the pharmaceutical industry with their ability to monitor, detect, and analyze biological and chemical substances quickly and accurately. They offer real-time insights into drug development, quality assurance, personalized medicine, and disease diagnostics. With continuous innovation in material science, nanotechnology, and AI, biosensors will remain a cornerstone in transforming pharmaceutical research and patient care.
