A Pitot tube is a widely used instrument for measuring the velocity of fluid flow, especially in aerodynamics and fluid dynamics applications. Named after Henri Pitot, who invented it in the 18th century, the Pitot tube relies on the principle of Bernoulli’s equation to determine fluid velocity by measuring the pressure difference between the dynamic (impact) and static pressure. Below is a detailed note on Pitot tubes, covering their components, working principle, types, applications, advantages, and limitations:
Components of a Pitot Tube:
1. Probe:
– The main component of a Pitot tube is a slender, tube-shaped probe that faces into the fluid flow.
2. Impact (Pitot) Port:
– The forward-facing end of the probe, known as the impact port, is positioned to directly face the incoming fluid flow.
3. Static Ports:
– These are small openings located on the sides or back of the probe, allowing the measurement of static pressure.
Working Principle:
1. Bernoulli’s Equation:
– Bernoulli’s equation relates the velocity, pressure, and elevation of fluid particles along a streamline. It is given by:
– For a Pitot tube, the term 1/2 ρv2 represents the dynamic pressure.
2. Dynamic and Static Pressure:
– The impact port of the Pitot tube directly faces the fluid flow, and it measures the dynamic pressure, which is the pressure due to the fluid’s velocity.
The static ports determine the static pressure, which the fluid exerts when it is not in motion.
3. Pressure Difference:
We use the difference between the dynamic pressure (measured at the impact port) and the static pressure (measured at the static ports) to determine the fluid velocity.
4. Velocity Calculation:
– The fluid velocity (\(v\)) is calculated using the formula:
– Where Pdynamic is the dynamic pressure and Pstatic is the static pressure.

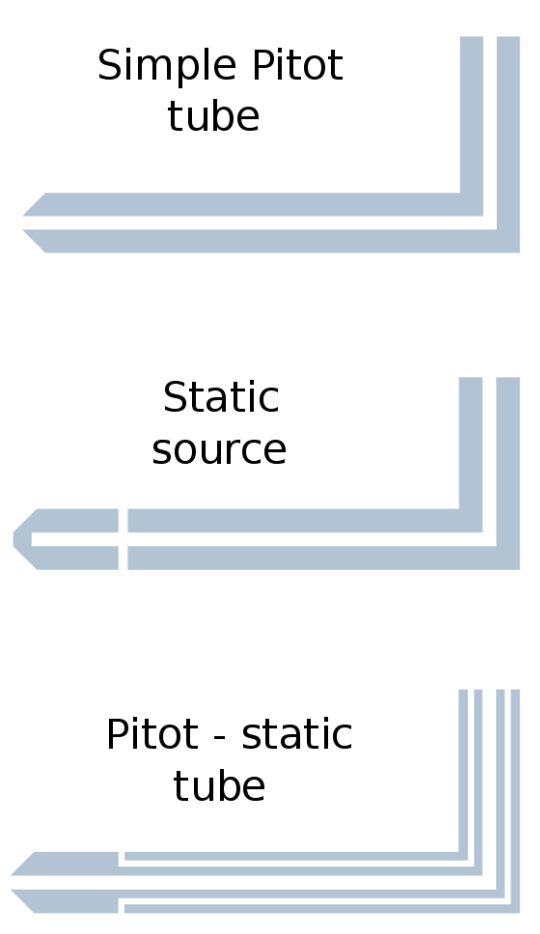

Types of Pitot Tubes:
1. Standard Pitot Tube:
– The standard Pitot tube consists of a single tube with an impact port and one or more static ports.
2. Prandtl Pitot Tube:
– This modified Pitot tube includes multiple impact ports at different positions along the tube, providing more accurate measurements in non-uniform flows.
3. Heated Pitot Tube:
– Used in aviation for measuring airspeed at high altitudes, heated Pitot tubes prevent ice formation on the impact port.
Applications of Pitot Tubes:
1. Aircraft:
– Pitot tubes are extensively used on aircraft to measure airspeed.
2. Meteorology:
– In weather instruments, Pitot tubes measure wind speed and direction.
3. Fluid Dynamics Experiments:
– Pitot tubes are used in laboratories to measure fluid velocity in experiments and simulations.
4. Ventilation Systems:
– Pitot tubes are employed to measure airspeed in HVAC systems and industrial ventilation.
5. Marine Applications:
– In marine engineering, Pitot tubes measure water flow velocity.
6. Automotive Testing:
– Pitot tubes are used in automotive testing to measure airspeed and aerodynamic properties.
Advantages of Pitot Tubes:
1. Simplicity:
– Pitot tubes are simple in design and relatively easy to manufacture.
2. Versatility:
– Suitable for measuring fluid velocity in a wide range of applications, including air, water, and other gases.
3. Low Maintenance:
– Pitot tubes have few moving parts and require minimal maintenance.
4. Cost-Effective:
– Compared to some other velocity measurement devices, Pitot tubes are cost-effective.
Limitations of Pitot Tubes:
1. Calibration:
– Accurate calibration is crucial for obtaining precise measurements.
2. Sensitivity to Angles:
– Pitot tubes are sensitive to the angle of attack, and misalignment can lead to inaccurate readings.
3. Temperature Effects:
– Variations in fluid temperature can affect the accuracy of measurements.
4. Potential for Blockage:
– In some environments, such as those with particulate matter, there is a risk of the impact port becoming blocked.
Pitot tubes are valuable instruments for measuring fluid velocity in various applications. Their simplicity, versatility, and cost-effectiveness make them widely used in fields such as aviation, meteorology, fluid dynamics research, and industrial processes. Careful calibration and proper installation are essential for obtaining accurate measurements with Pitot tubes.
