Overview and Importance of Biopharmaceutics
Biopharmaceutics is a critical sub-discipline of pharmaceutical sciences that deals with the study of how the physicochemical properties of drugs, the formulation of drug products, and various physiological factors influence the rate and extent of drug absorption and availability at the site of action. It bridges the gap between pharmaceutics, pharmacokinetics, and clinical pharmacology, and is pivotal in determining the therapeutic efficacy and safety of drug products.

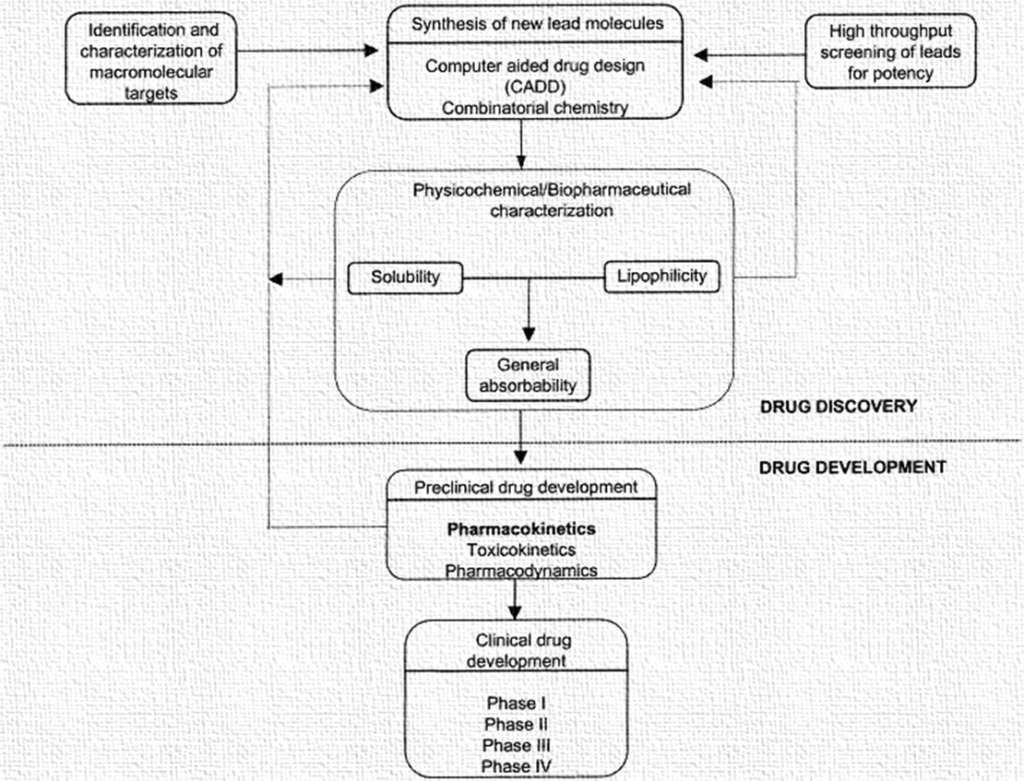

The importance of biopharmaceutics lies in its multifaceted applications across drug discovery, preclinical formulation development, clinical evaluation, regulatory approval, and post-marketing surveillance. It provides tools and frameworks for optimizing drug delivery, minimizing variability in drug response, and ensuring bioequivalence between generic and innovator products.
2. Evolution and Historical Background
Historically, drug development focused heavily on chemical synthesis and pharmacological screening. However, therapeutic failures observed in the 1960s and 70s, especially with reformulated drugs, brought to light the importance of drug absorption characteristics. This led to the development of the field now known as biopharmaceutics. Regulatory bodies like the US FDA and EMA soon mandated bioavailability (BA) and bioequivalence (BE) studies as prerequisites for drug approval and marketing.
The increasing complexity of dosage forms (e.g., controlled-release, transdermal patches, nanoparticles) and the rise of biologics have further expanded the scope of biopharmaceutics, making it a cornerstone of modern drug development and personalized medicine.
3. Objectives of Biopharmaceutics
The primary goals of biopharmaceutics are:
- To understand the relationship between the formulation of a drug and its therapeutic performance.
- To predict the in vivo behavior of drugs based on in vitro testing.
- To design dosage forms that maximize therapeutic effectiveness while minimizing side effects.
- To evaluate and improve the oral bioavailability of poorly soluble or poorly permeable drugs.
- To support the development of generic drug products through BE studies.
- To determine the impact of patient-specific factors (e.g., age, disease state, food intake) on drug performance.
4. Key Terminologies in Biopharmaceutics
4.1 Bioavailability (BA): Bioavailability refers to the rate and extent to which the active ingredient of a drug is absorbed into systemic circulation and becomes available at the site of action. It is influenced by factors like drug solubility, intestinal permeability, first-pass metabolism, and formulation type.
4.2 Bioequivalence (BE): Two drug formulations are said to be bioequivalent if they produce comparable bioavailability profiles, i.e., similar Cmax, Tmax, and AUC values. This ensures therapeutic equivalence, especially important for generic substitutions.
4.3 Pharmaceutical Equivalence : Pharmaceutical equivalents contain the same active ingredients, dosage form, strength, and route of administration, but may differ in excipients or manufacturing processes.
5. Factors Affecting Drug Absorption
Drug absorption from a dosage form depends on multiple interacting factors, broadly categorized as:
5.1 Physicochemical Properties of Drug
Solubility: Poorly soluble drugs have limited absorption.
Permeability: Determines the drug’s ability to cross biological membranes.
Ionization (pKa): Affects the drug’s ability to diffuse across lipid membranes.
Particle Size: Smaller particles dissolve faster.
Polymorphism: Different crystal forms have varying solubility.
Lipophilicity: Lipid-soluble drugs cross membranes more easily.
5.2 Dosage Form Factors
- Disintegration and dissolution rate of the formulation.
- Excipients that affect release, stability, or pH.
- Manufacturing process (e.g., granulation, compression).
5.3 Physiological Factors
Gastrointestinal pH: Affects solubility and ionization.
Gastric emptying and motility: Determines drug residence time.
Enzymatic activity: Some drugs are degraded in the GI tract.
Blood flow: Influences absorption rate.
Presence of food: Can delay or enhance absorption.
6. Mechanisms of Drug Transport
Drugs can cross biological membranes through various mechanisms:
6.1 Passive Diffusion: Movement of drug molecules from high to low concentration without energy. Most common for lipophilic, unionized drugs.
6.2 Facilitated Diffusion: Requires carrier proteins, but no energy. Follows concentration gradient, e.g., glucose transport.
6.3 Active Transport: Requires energy (ATP). Drug moves against the concentration gradient.
Examples include uptake of amino acids and vitamins.
6.4 Endocytosis/Pinocytosis: Useful for large molecules like proteins and peptides.
Vesicular transport across the membrane.
7. Drug Dissolution and Solubility
Dissolution is the process by which a solid drug dissolves in a solvent, making it available for absorption. The rate of dissolution plays a critical role in oral drug bioavailability.
7.1 Noyes–Whitney Equation
Where:
D = diffusion coefficient,
A = surface area,
Cs = saturation solubility,
C = concentration at time t,
h = thickness of the diffusion layer.
This equation shows that increasing solubility or surface area enhances the dissolution rate, thus improving bioavailability.
8. Biopharmaceutic Classification System (BCS)
Developed by Amidon et al., the BCS classifies drugs into four categories based on solubility and intestinal permeability:
| Class | Solubility | Permeability | Examples |
| I | High | High | Propranolol, Metoprolol |
| II | Low | High | Ketoprofen, Phenytoin |
| III | High | Low | Cimetidine, Acyclovir |
| IV | Low | Low | Chlorothiazide, Amphotericin B |
BCS is important for biowaivers, which allow in vitro testing to substitute for in vivo BE studies in some cases.
9. Bioavailability and Its Determinants
9.1 Absolute Bioavailability: Comparison between a non-intravenous and intravenous route:
9.2 Relative Bioavailability: Comparison between two different non-IV formulations:
Factors influencing bioavailability:
- First-pass metabolism
- Gastrointestinal degradation
- Interaction with food or other drugs
- Dosage form properties
10. Bioequivalence Studies
To obtain marketing approval for generic drugs, BE studies are mandatory.
10.1 BE Criteria
According to FDA: 90% confidence interval for AUC and Cmax must lie within 80% to 125% of the reference product.
10.2 Study Design
- Randomized, open-label, crossover design.
- Conducted in healthy volunteers.
- Includes a washout period to eliminate residual drug.
10.3 Parameters Assessed
- Cmax – Peak plasma concentration.
- Tmax – Time to reach Cmax.
- AUC – Area under the plasma concentration-time curve.
- t1/2 – Elimination half-life.
11. In Vitro–In Vivo Correlation (IVIVC)
IVIVC is the establishment of a predictive relationship between in vitro dissolution and in vivo bioavailability.
Types of IVIVC
Level A: Point-to-point correlation (ideal and most informative).
Level B: Based on statistical moments.
Level C: Correlation at one or multiple time points.
IVIVC allows formulation scientists to reduce the number of in vivo studies, accelerating the development process and reducing costs.
12. Role of Biopharmaceutics in Dosage Form Design
Biopharmaceutics informs the design of dosage forms with optimized therapeutic profiles:
12.1 Immediate-Release Dosage Forms: Fast dissolution and absorption. Suitable for conditions requiring rapid onset.
12.2 Modified-Release Formulations: Controlled or sustained release to maintain steady plasma levels. Minimize dosing frequency and side effects.
12.3 Targeted Drug Delivery: Site-specific drug delivery (e.g., colon-targeted, nasal, ocular). Improved efficacy with reduced systemic exposure.
13. Impact of Food and Disease on Drug Absorption
Food Effects:
- Can alter gastric emptying, pH, and solubility.
- High-fat meals may enhance or reduce drug absorption.
Diseases: Conditions like Crohn’s disease, ulcers, or liver impairment can affect BA and BE. Thus, food-effect studies are often required for regulatory submission.
14. Regulatory Guidelines in Biopharmaceutics
Major regulatory agencies (FDA, EMA, WHO) have well-defined guidelines for conducting BA and BE studies. These include:
- ICH M9 Biopharmaceutics Classification System-Based Biowaivers
- FDA Guidance on Bioavailability and Bioequivalence
- EMA Guideline on Investigation of Bioequivalence
- Such harmonization ensures global drug quality, safety, and efficacy standards.
15. Modern Applications and Future Directions
The field of biopharmaceutics is rapidly evolving, driven by innovations in technology and healthcare demands:
PBPK Modeling: Use of computational tools to predict drug kinetics.
Artificial Intelligence (AI) in predicting absorption and metabolism.
Biopharmaceutics of Biologics: Large molecules like monoclonal antibodies require specialized approaches.
3D Printing: Personalized tablets with programmable drug release.
Biosimilars: Biopharmaceutics plays a crucial role in regulatory approval.
Conclusion
Biopharmaceutics provides a scientific foundation for understanding and predicting drug absorption, distribution, metabolism, and elimination. It supports rational formulation development, guides regulatory approval, and ensures therapeutic consistency across drug products. As drug development becomes more targeted, personalized, and technology-driven, the role of biopharmaceutics will continue to expand, ensuring that medications not only reach the patient safely but also deliver optimal therapeutic outcomes.
