Camera lucida: Quantitative microscopy of crude drugs involves the precise measurement and analysis of microscopic features of botanical materials to assess their quality, authenticity, and purity. The camera lucida method is an essential tool in this process, allowing for the accurate projection and tracing of microscopic images onto paper, which facilitates the creation of diagrams to scale. These diagrams serve as valuable records of microscopic observations and aid in botanical identification, quality control, and research. Let’s delve into a detailed note on the camera lucida method and diagrams of microscopic objects to scale with camera lucida in quantitative microscopy of crude drugs:
Camera Lucida

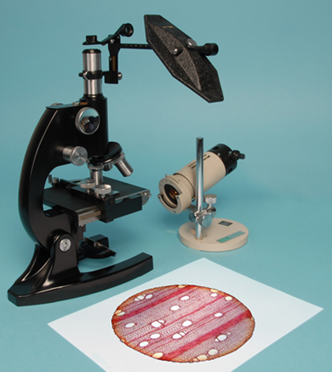

A camera lucida is an optical device attached to a microscope that allows for the projection of the image of a microscopic object onto paper. This device superimposes the image seen through the microscope eyepiece onto the drawing surface, enabling the observer to trace and annotate the projected image accurately.
Procedure
1. Attachment: The camera lucida attachment is mounted onto the eyepiece of the microscope, aligning with the optical path of the microscope.
2. Calibration: Before use, the camera lucida must be calibrated to ensure accurate scaling of the projected image. This calibration is typically done using a stage micrometer with known dimensions.
3. Projection: When the microscope is focused on the microscopic object of interest, the camera lucida projects the image onto the drawing surface below. The observer can see both the real image through the microscope and the projected image on the drawing surface simultaneously.
4. Tracing and Annotation: Using a pencil or pen, the observer traces the outlines and details of the projected image onto the paper. Annotations such as labels, measurements, and other relevant information can be added directly to the diagram.
Importance of Camera lucida
1. Accurate Representation: The camera lucida method allows for the creation of accurate and detailed diagrams of microscopic objects, capturing their morphology, structure, and features with precision.
2. Documentation: Diagrams created with the camera lucida serve as permanent records of microscopic observations, providing visual documentation of botanical specimens, anatomical structures, and cellular characteristics.
3. Botanical Identification: Diagrams to scale with camera lucida aid in botanical identification by highlighting characteristic features of plant parts, such as pollen grains, stomata, trichomes, and tissue types.
4. Quality Control: In pharmaceutical analysis, diagrams created using the camera lucida method are used for quality control and standardization of crude drugs, ensuring consistency in microscopic features across samples.
Diagrams of Microscopic Objects to Scale with Camera Lucida
Definition: Diagrams of microscopic objects to scale are precise representations of microscopic features, such as cells, tissues, or structures, created using the camera lucida method. These diagrams accurately depict the size, shape, and spatial relationships of microscopic elements observed under the microscope.
Procedure
1. Observation: The microscopic object of interest is observed under the microscope, focusing on relevant features and details.
2. Projection and Tracing: The camera lucida projects the image of the microscopic object onto the drawing surface, allowing the observer to trace the outlines and details of the projected image with a pencil or pen.
3. Scaling: By calibrating the camera lucida with a stage micrometer, the projected image can be accurately scaled, ensuring that measurements and proportions in the diagram are representative of the actual size and dimensions of the microscopic object.
4. Annotation: Annotations, labels, and measurements are added to the diagram to provide additional information and context about the observed features.
Examples of Diagrams of Microscopic Objects
1. Pollen Grains: Diagrams of pollen grains to scale with camera lucida can depict the size, shape, aperture structure, and ornamentation patterns characteristic of different plant species, aiding in pollen identification and pollen analysis.
2. Stomata: Diagrams of stomata and stomatal complexes to scale provide detailed representations of stomatal morphology, including guard cells, subsidiary cells, and pore dimensions. These diagrams are useful for studying stomatal function, distribution, and density in plant leaves.
3. Trichomes: Diagrams of trichomes to scale with camera lucida illustrate the diverse forms and structures of plant hairs, including glandular and non-glandular trichomes. These diagrams help in the identification of plant species and the study of trichome-mediated functions such as defense and secretion.
4. Cellular Structures: Diagrams of plant cell types, tissues, and anatomical structures to scale provide visual representations of cellular organization, wall patterns, and spatial relationships within plant tissues. These diagrams are essential for botanical studies, teaching, and research.
Conclusion
The camera lucida method is a valuable tool in quantitative microscopy of crude drugs, allowing for the creation of accurate and detailed diagrams of microscopic objects to scale. These diagrams serve as important records of botanical observations, aiding in botanical identification, quality control, research, and education. By combining the camera lucida method with meticulous observation and annotation, researchers, analysts, and educators can document and communicate microscopic findings effectively, contributing to the advancement of botanical science and pharmaceutical analysis.
