Sachse Mohrs theory
Sachse Mohrs theory, also known as the theory of strainless rings, was proposed by Sachse and Mohr in the late 19th century to explain the stability of cycloalkanes, particularly cyclohexane and other medium-sized rings.
This theory was developed as an improvement over Baeyer’s Strain Theory, which suggested that rings larger than cyclopentane would be highly strained and unstable due to bond angle deviations from the ideal tetrahedral angle (109.5°). However, Sachse and Mohr proposed that cyclohexane and other larger rings can adopt strain-free conformations by assuming non-planar structures, avoiding angular strain.
1918 Sachse and Mohr’s Argument
In 1918, Sachse and Mohr further refined their theory on the stability of cycloalkanes, particularly cyclohexane and other medium to large rings. Their argument challenged the earlier Baeyer Strain Theory (1885), which suggested that rings deviating from the ideal tetrahedral bond angle (109.5°) would experience angle strain and become unstable.
Key Arguments by Sachse and Mohr (1918)
1.Cycloalkanes Are Not Planar
- Baeyer assumed that all rings were flat (planar), which would force bond angles to deviate from 109.5°, creating angle strain.
- Sachse and Mohr disproved this by proposing that rings, especially cyclohexane, can adopt non-planar (puckered) conformations, eliminating strain.
2. Strainless Conformations Exist
- They argued that certain puckered conformations allow cycloalkanes to maintain ideal tetrahedral angles, thus avoiding strain.
- For cyclohexane, they identified two major strain-free conformations:
- Chair conformation (most stable)
- Boat conformation (less stable due to steric hindrance)
Flexibility of Larger Rings
- Instead of being highly strained as predicted by Baeyer, large rings can twist and fold to relieve strain.
- This explained why rings with more than six carbon atoms are stable despite their size and complexity.
Sachse and Mohr’s Proposal
The Sachse-Mohr Theory was proposed by Hermann Sachse (1890) and later refined by Mohr (1918) to explain the stability of cycloalkanes, particularly cyclohexane and higher cyclic compounds. This theory challenged Baeyer’s Strain Theory, which incorrectly suggested that cyclohexane and larger rings should be highly strained and unstable.
Sachse and Mohr proposed that rings are not planar but adopt puckered conformations to maintain ideal tetrahedral bond angles (109.5°), thus eliminating strain.
Key Proposals of Sachse and Mohr
A. Cycloalkanes Are Non-Planar (Puckered Structures Exist)
- Baeyer assumed that rings were flat (planar), leading to bond angles different from 109.5°, causing strain.
- Sachse and Mohr proposed that cyclohexane and larger rings adopt three-dimensional puckered conformations, eliminating angle strain.
B. Strain-Free Conformations in Cyclohexane
Chair Conformation (Most stable)
- Maintains ideal bond angles (109.5°)
- Eliminates torsional strain by staggering hydrogen atoms
Boat Conformation (Less stable)
- Still maintains ideal bond angles
- Experiences steric hindrance due to flagpole interactions
Flexibility in Larger Rings
- Higher cycloalkanes can also twist and fold to minimize strain.
- Rings larger than cyclohexane exist in multiple conformations, avoiding excessive strain.
Implications of Strainless Rings
The Sachse-Mohr Theory introduced the concept of strainless rings, which had significant implications in organic chemistry, conformational analysis, and pharmaceutical sciences. It reshaped the understanding of cycloalkane stability and reactivity.
Cyclohexane as an Example of the Sachse-Mohr Theory
Cyclohexane is one of the best examples supporting the Sachse-Mohr Theory of Strainless Rings. Unlike smaller cycloalkanes (which exhibit angle strain), cyclohexane adopts non-planar conformations that eliminate strain and make it highly stable.

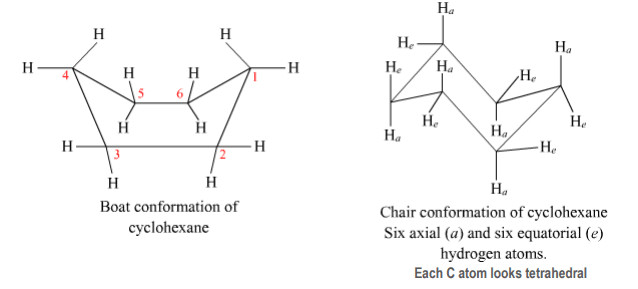

Boat Conformation
The boat conformation is one of the possible three-dimensional shapes that cyclohexane can adopt. Although it maintains the ideal bond angle of 109.5° (like the chair conformation), it is less stable due to steric hindrance and torsional strain.
Chair Conformation
The chair conformation is the most stable and low-energy form of cyclohexane. It eliminates angle strain and torsional strain, making it the preferred structure in equilibrium.
Stability Enhancement
Stability enhancement refers to strategies and factors that increase the thermodynamic or kinetic stability of a molecule, reducing strain and making it more energetically favorable. In cyclohexane and other organic systems, stability enhancement is achieved through conformational changes, steric minimization, and electronic effects.
The concept of strainless rings holds significant implications for the design and synthesis of cyclic organic compounds. It proposes that specific ring sizes and structural features have the potential to endow compounds with greater stability and reduced reactivity compared to others. Grasping the principles governing strainless rings becomes a valuable tool for chemists, enabling them to anticipate the stability and behavior of cyclic molecules. Additionally, this understanding facilitates the development of more efficient synthetic routes for the production of these compounds. In essence, the concept of strainless rings provides a strategic framework for optimizing the design and synthesis of cyclic organic molecules in a manner that aligns with desired stability and reactivity characteristics.
Limitations of Sachse Mohrs Theory of Strainless Rings
Here are the limitations of Sachse Mohr’s Concept of Strainless Rings listed point-wise:
1. Oversimplified Criterion: The concept relies solely on the size of the ring to determine strain, neglecting other contributing factors like steric hindrance and bond angle distortions.
2. Ignoring Steric Effects: It does not consider the potential strain caused by bulky substituents attached to the ring, which can significantly affect the molecule’s stability.
3. Lack of Conformational Analysis: The concept does not account for the possibility of non-planar conformations in larger rings, which can lead to additional strain.
4. Limited Applicability: While it may provide a rough approximation for some cycloalkanes, it fails to fully explain the stability of all cyclic compounds, especially those with complex substituent patterns or unusual ring sizes.
5. Inadequate for Modern Organic Chemistry: With advancements in computational chemistry and conformational analysis, the simplistic approach of Sachse Mohr’s Concept is insufficient to describe cycloalkanes’ stability in detail.
