Limit Test for Iron: In pharmaceutical analysis, the purity of pharmaceutical substances is an essential requirement because impurities present even in trace quantities may affect the quality, stability, efficacy, and safety of medicinal products. Among various impurities encountered in pharmaceutical substances, iron is considered an important inorganic impurity because it may originate from raw materials, manufacturing equipment, water, reagents, or processing methods. Excessive iron contamination can alter the appearance, stability, and therapeutic quality of pharmaceutical preparations. Therefore, pharmaceutical substances are routinely tested for iron impurities using the limit test for iron.
The limit test for iron is a semi-quantitative analytical procedure designed to detect and control small quantities of iron impurities in pharmaceutical substances. The test is based on the reaction between iron ions and thioglycolic acid in the presence of ammonia, producing a purple-colored ferrous thioglycolate complex. The intensity of the color produced by the test solution is compared visually with that produced by a standard iron solution containing a known amount of iron impurity.
The test does not provide the exact amount of iron present but determines whether the iron impurity is within the permissible pharmacopoeial limit.
Definition of Limit Test for Iron
The limit test for iron may be defined as a semi-quantitative analytical test used to detect and control small quantities of iron impurities in pharmaceutical substances by comparing the intensity of color produced with a standard iron solution under specified conditions.
The purpose of the test is to ensure that iron impurities remain below the prescribed pharmacopoeial limit.
Principle of the Limit Test for Iron
The principle of the limit test for iron is based on the reaction of iron ions with thioglycolic acid in an alkaline medium produced by ammonia. Thioglycolic acid reduces ferric ions to ferrous ions and subsequently forms a purple-colored ferrous thioglycolate complex.
The reaction produces a characteristic pink to purple coloration whose intensity depends upon the concentration of iron present in the sample.
The color developed in the test solution is compared visually with that produced by a standard iron solution containing a known quantity of iron.
If the color intensity of the test solution is not greater than that of the standard solution, the sample passes the test.
Chemical Reactions Involved
Initially, ferric ions are reduced to ferrous ions by thioglycolic acid.
The simplified reduction reaction may be represented as:
2Fe3+ + 2HSCH2COOH → 2Fe2+ + HOOCCH2S-SCH2COOH + 2H+
The ferrous ions then react with thioglycolic acid in alkaline medium to form a purple-colored ferrous thioglycolate complex.
The intensity of the purple coloration corresponds approximately to the quantity of iron impurity present.
Sources of Iron Impurities
Iron impurities may enter pharmaceutical substances from various sources during manufacturing, processing, or storage.
Common sources include:
- Iron-containing raw materials
- Corrosion of manufacturing equipment
- Metallic containers
- Water used in manufacturing
- Reagents and chemicals
- Environmental contamination
Iron contamination may also arise from improper handling or storage conditions.
In pharmaceutical manufacturing plants, stainless steel equipment may gradually release trace amounts of iron due to corrosion or mechanical wear.
Importance of the Limit Test for Iron
The limit test for iron is important because excessive iron impurities may:
- Affect product stability
- Cause discoloration of formulations
- Catalyze oxidation reactions
- Reduce shelf life
- Alter therapeutic quality
- Interfere with analytical procedures
Iron ions are known to accelerate oxidative degradation of many pharmaceutical substances, especially vitamins, antibiotics, and biological preparations.
Therefore, controlling iron impurities is essential for maintaining pharmaceutical quality and stability.
Reagents Used in the Limit Test for Iron
Several reagents are required for performing the test accurately.
Thioglycolic Acid: Thioglycolic acid is the principal reagent used in the test.
It performs two important functions:
- Reduction of ferric ions to ferrous ions
- Formation of the colored ferrous thioglycolate complex
The reagent is highly sensitive for detecting small quantities of iron
Citric Acid: Citric acid is added to prevent interference from other metallic impurities.
It forms complexes with metals other than iron, thereby improving the specificity of the test.
Citric acid also helps maintain suitable reaction conditions.
Ammonia Solution: Ammonia solution provides the alkaline medium necessary for development of the purple-colored ferrous thioglycolate complex. Without alkaline conditions, proper color formation does not occur.
Standard Iron Solution: A standard iron solution containing a known amount of iron impurity is prepared for comparison with the test solution.
The standard is generally prepared using ferric ammonium sulfate or another suitable iron compound.
Iron-Free Water: Purified water free from iron contamination is essential to avoid false-positive results.Distilled or deionized water is generally used.
Apparatus Used
The apparatus commonly used includes:
- Nessler cylinders
- Pipettes
- Volumetric flasks
- Measuring cylinders
- Glass rods
Nessler cylinders are especially useful because they permit convenient visual comparison of color intensity between the test and standard solutions.

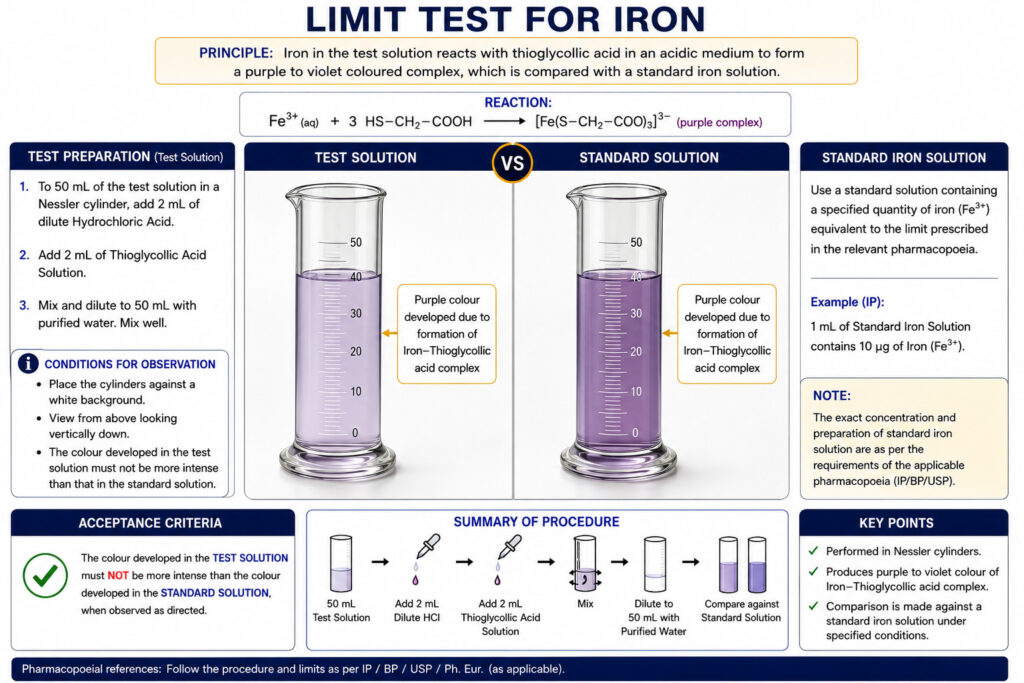

Procedure for the Limit Test for Iron
In the procedure, a specified quantity of the pharmaceutical substance is dissolved in water or another suitable solvent and transferred into a Nessler cylinder.
Citric acid and thioglycolic acid are added to the solution. Ammonia solution is then added to make the solution alkaline.
Simultaneously, a standard iron solution containing the prescribed amount of iron impurity is prepared under identical conditions in another Nessler cylinder.
Both solutions are diluted to the same volume and allowed to stand for a specified time, generally about five minutes, for complete color development.
The purple coloration developed in the test solution is compared visually with that produced in the standard solution.
If the color intensity of the test solution is not greater than that of the standard solution, the sample complies with the limit test for iron.
Role of Various Reagents
Each reagent used in the test performs a specific function.
Thioglycolic Acid
- Reduces ferric ions to ferrous ions
- Forms colored complex with iron
Citric Acid
- Prevents interference from other metals
- Improves test specificity
Ammonia
- Provides alkaline medium
- Facilitates color development
Standard Iron Solution
- Serves as reference for comparison
Observation in the Test
The principal observation is the intensity of purple or pink coloration developed in the test solution.
Two outcomes are possible.
Pass Condition: If the purple color of the test solution is less intense than or equal to the standard solution, the sample passes the test.
Fail Condition: If the color intensity of the test solution is greater than that of the standard solution, the sample fails because iron impurities exceed permissible limits.
Interpretation of Results
The limit test for iron is a comparative test rather than an exact quantitative estimation.
The test indicates whether:
- Iron impurities are within acceptable pharmacopoeial limits
or - Iron impurities exceed prescribed standards
Careful visual comparison under identical lighting conditions is necessary for accurate interpretation.
Precautions in the Limit Test for Iron
Several precautions must be followed to ensure reliable results.
All glassware should be thoroughly cleaned and free from iron contamination. Iron-free distilled water should be used throughout the procedure.
Reagents must be freshly prepared because old reagents may affect color development.
Both test and standard solutions should be prepared under identical experimental conditions including volume, pH, reagent concentration, and standing time.
Color comparison should be carried out under uniform lighting conditions against a white background.
Contamination from metallic instruments should be avoided during handling.
Advantages of the Limit Test for Iron
The limit test for iron possesses several advantages.
The procedure is simple, economical, sensitive, and suitable for routine pharmaceutical quality control. It does not require sophisticated instrumentation and can detect small amounts of iron effectively.
The method is particularly useful for rapid screening of pharmaceutical substances.
Limitations of the Test
Despite its usefulness, the test has certain limitations.
The test is semi-quantitative and depends on visual comparison, which may vary between observers.
Colored substances may interfere with proper color comparison. Certain metallic ions may also interfere if not adequately masked.
The method is less accurate and precise compared to advanced instrumental techniques such as atomic absorption spectroscopy or inductively coupled plasma spectroscopy.
Pharmaceutical Applications of the Limit Test for Iron
The limit test for iron is widely used in pharmaceutical analysis for testing:
- Pharmaceutical raw materials
- Inorganic chemicals
- Excipients
- Water used in manufacturing
- Pharmaceutical formulations
The test is commonly applied to substances such as:
- Citrates
- Phosphates
- Sulphates
- Carbonates
- Pharmaceutical-grade chemicals
Routine testing helps ensure compliance with official purity standards.
Regulatory Importance
Official pharmacopoeias such as:
- Indian Pharmacopoeia Commission
- United States Pharmacopeial Convention
- British Pharmacopoeia Commission
include official procedures and permissible limits for iron impurities.
Compliance with these standards is essential for:
- Drug approval
- Pharmaceutical quality assurance
- Regulatory compliance
- Patient safety
Pharmaceutical industries therefore routinely perform iron limit tests during quality control operations.
Difference Between Limit Test and Quantitative Estimation
The limit test differs from quantitative estimation because it only determines whether iron impurities are within prescribed limits.
It does not measure the exact concentration of iron present in the sample.
Limit tests are simpler, faster, and more economical than quantitative analytical procedures, making them ideal for routine quality control testing.
Conclusion
The limit test for iron is an important semi-quantitative analytical procedure used in pharmaceutical analysis to detect and control iron impurities within acceptable pharmacopoeial limits. The test is based on the formation of a purple-colored ferrous thioglycolate complex produced when iron reacts with thioglycolic acid in an alkaline medium.
Iron impurities may arise from raw materials, water, manufacturing equipment, reagents, or environmental contamination. Excessive iron content may adversely affect pharmaceutical quality, stability, appearance, and safety.
The test provides a simple, economical, and effective method for routine impurity monitoring and is officially included in pharmacopoeias such as the Indian Pharmacopoeia Commission, United States Pharmacopeial Convention, and British Pharmacopoeia Commission.
Therefore, the limit test for iron plays a significant role in pharmaceutical quality assurance by ensuring the purity, stability, and regulatory compliance of pharmaceutical substances and formulations.
